UK-based medical device manufacturer CSP001 "compact" Electrical Suction Pump High Suction STANDARD Re-Usable Jar
Oxylitre's range of Compact Electrical Suction Pumps (CSP's) deliver a high quality suction solution for Healthcare and Emergency Services. Our contemporary design Electrical Suction Pump is user friendly, comprehensively field tested to the latest standards. Made from high impact plastic, the units streamline compact design is both durable and lightweight. The Compact Suction Pump range (CSP's) are intuitive to use incorporating a 0-760mmHg panel mounted gauge and a variable vacuum adjustment control knob. These units are reliable and extremely functional our range of Compact Suction Units offer high performance with operational reliability.
Oxylitre's range of Compact Suction Units are dependable, with minimum maintenance required. Our Range of Compact Suction Units come with a long service life and a 7 year warranty.
Specification
- High Vacuum High Flow
- Single 1000ml Standard Autoclavable Jar Assembly
- Robust High Impact Resistant Moulded Enclosure
- Encapsulated Bacterial/Hydrophobic Filter Disk
- Control Knob Vacuum Adjustment
- Vacuum Gauge Indication
- 80 to 500mmHg.
- Flowrate > 25Lpm
- 12volt DC only
- Weight 3.4Kg
- Approximate Size 310mm x 305mm x 170mm
- Peak Sound Output at MAX Vacuum from 1m: 65 decibels
Compare all 15 models in this range
Accessories & Related Products
All 15 models
CSP Series DC Powered Suction Pumps product codes
Find the code you need by suction, jar type, mounting and bracket or holder.
Common to all 15 models
- Robust High Impact Resistant Moulded Enclosure
- Encapsulated Bacterial/Hydrophobic Filter Disk
- Control Knob Vacuum Adjustment
- Vacuum Gauge Indication
- Flowrate > 25Lpm
- 12volt DC only
- Weight 3.4Kg
- Approximate Size 310mm x 305mm x 170mm
- Peak Sound Output at MAX Vacuum from 1m: 65 decibels
| Model | Jar type | Mounting | Bracket/holder | Specification | Actions |
|---|---|---|---|---|---|
Suction High Suction, nine models Also common to these nine models:
| |||||
CSP001 "compact" Electrical Suction Pump High Suction STANDARD Re-Usable Jar  | Standard Re-usable Jar | Portable | No Bracket |

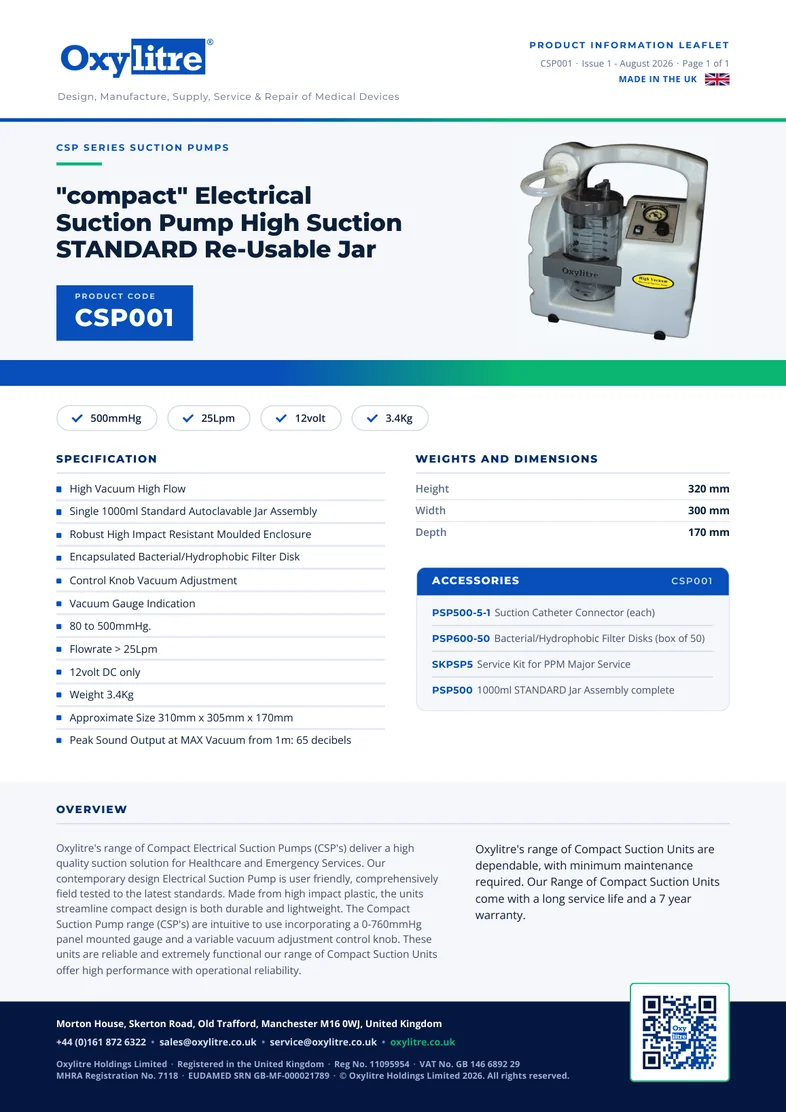

| CSP001 Product sheet (PDF) |
CSP001B "compact" Electrical Suction Pump High Suction STANDARD Re-Usable Jar + Tubing Holder  | Standard Re-usable Jar | Portable | Tubing Holder |
| |
CSP001T "compact" Electrical Suction Pump High Suction STANDARD Re-Usable Jar (Trolley Mounted)  | Standard Re-usable Jar | Trolley Mounted | No Bracket |

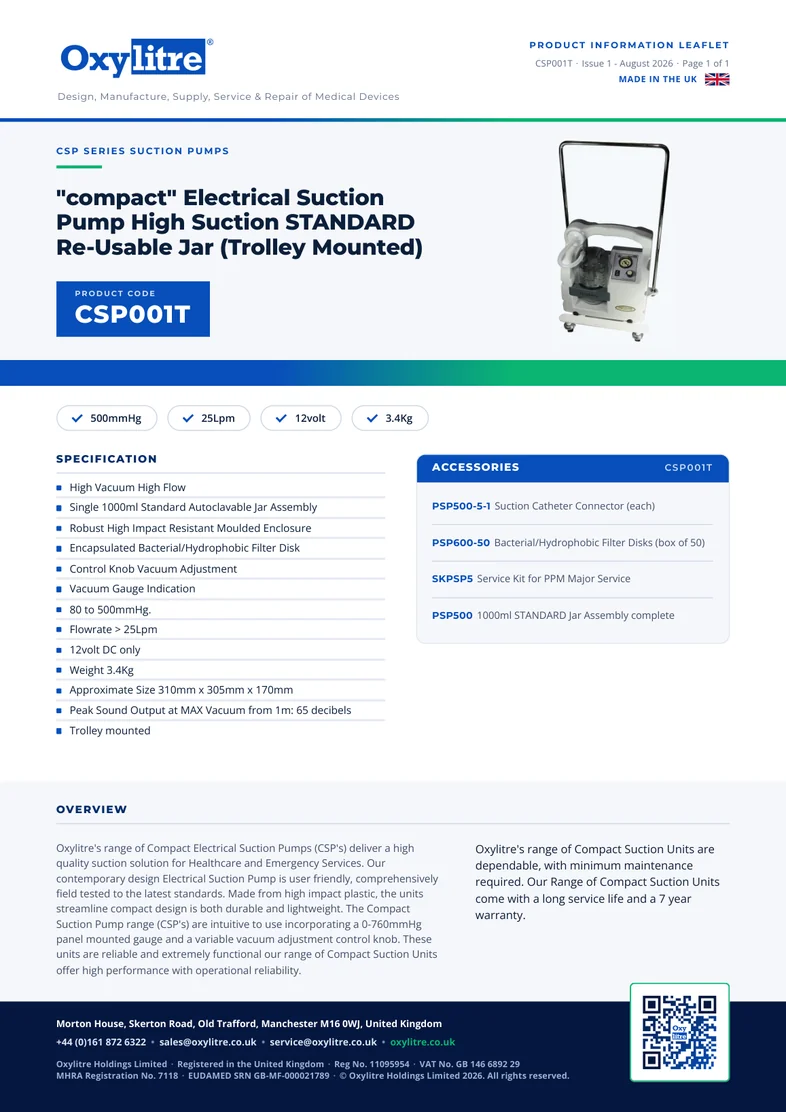

| CSP001T Product sheet (PDF) |
CSP003 "compact" Electrical Suction Pump High Suction SERRES Bracket  | Serres Bracket | Portable | No Bracket |

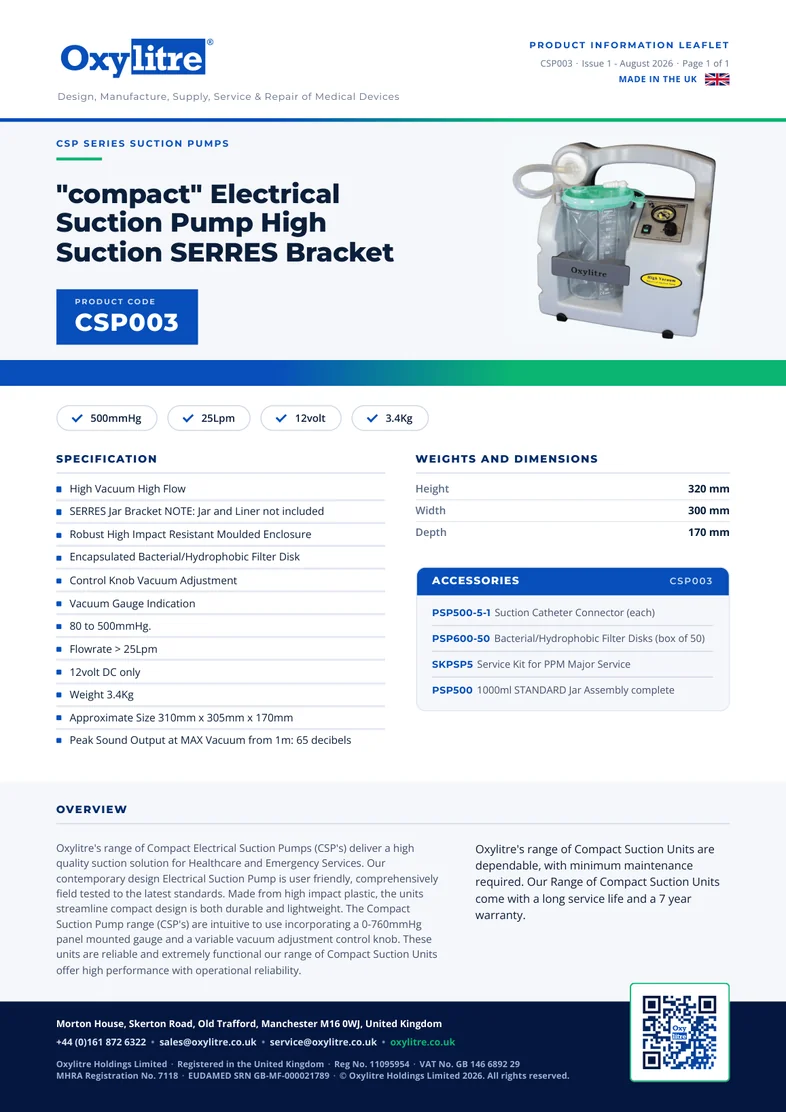

| CSP003 Product sheet (PDF) |
CSP003B "compact" Electrical Suction Pump High Suction SERRES Bracket + Tubing Holder  | Serres Bracket | Portable | Tubing Holder |
| |
CSP003T "compact" Electrical Suction Pump High Suction SERRES Bracket (Trolley Mounted)  | Serres Bracket | Trolley Mounted | No Bracket |

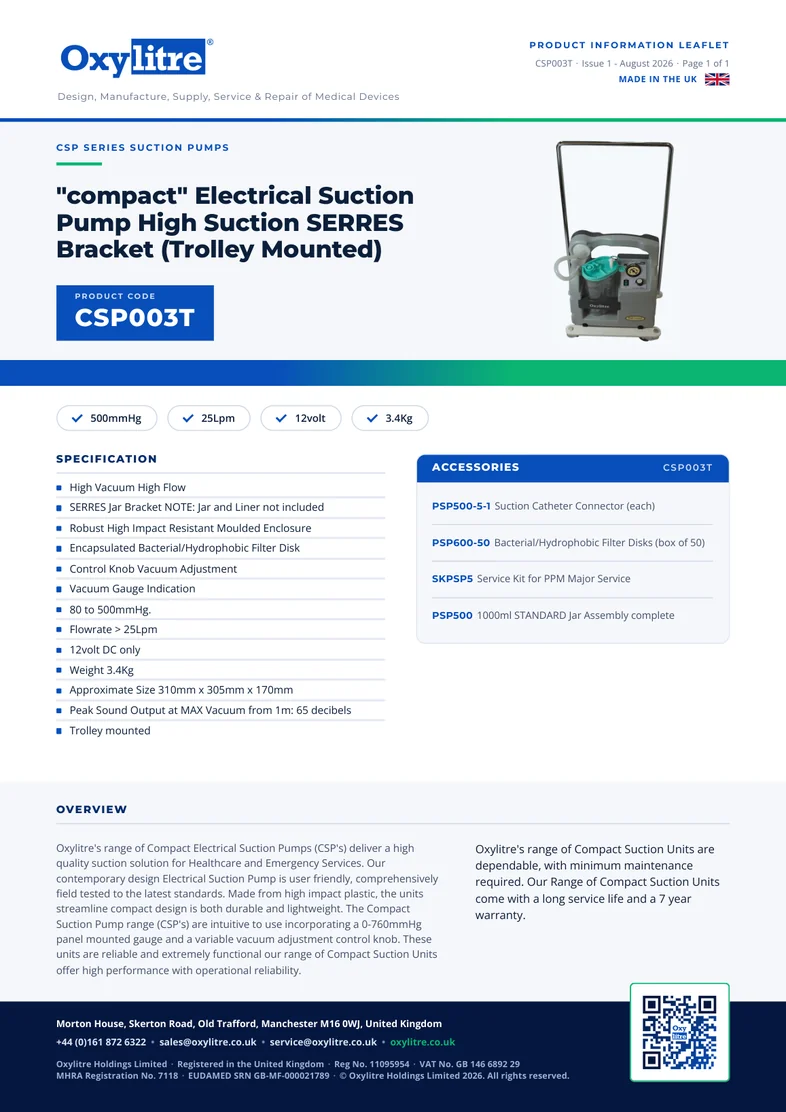

| CSP003T Product sheet (PDF) |
CSP004 "compact" Electrical Suction Pump High Suction Disposable VACSAX Jar + Liner  | VaxSax Jar & Liner | Portable | No Bracket |

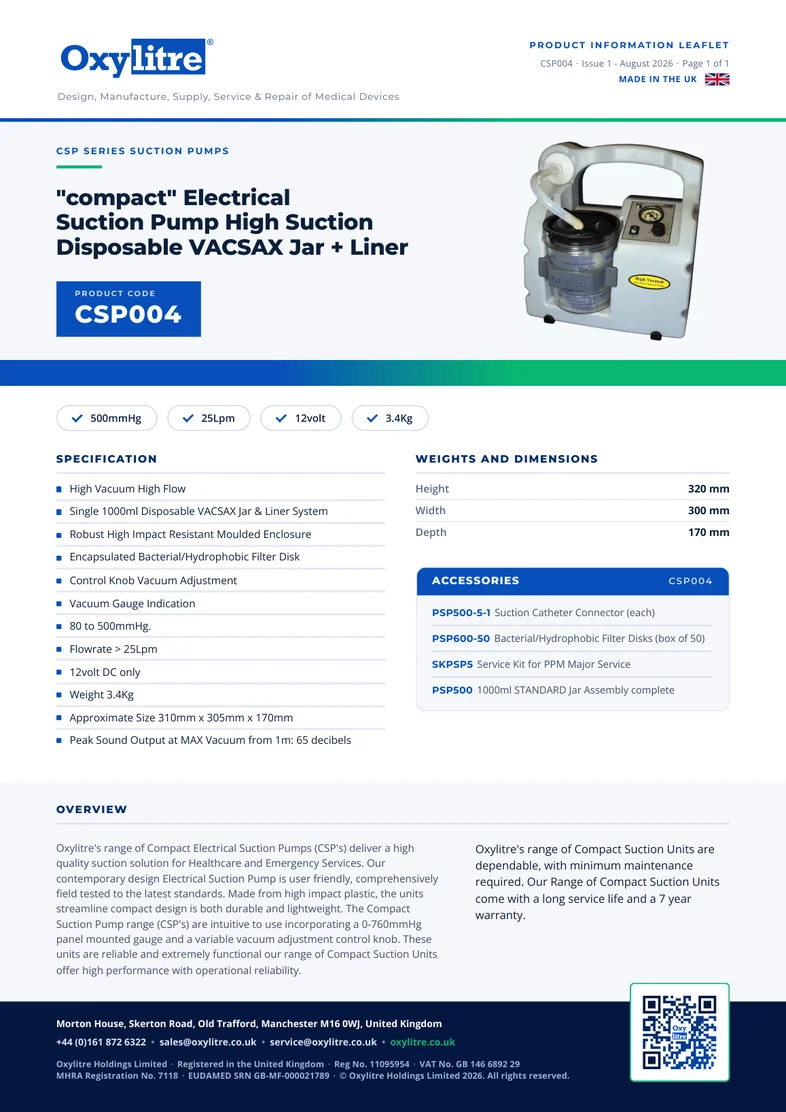

| CSP004 Product sheet (PDF) |
CSP004B "compact" Electrical Suction Pump High Suction Disposable VACSAX Jar + Liner + Tubing Holder  | VaxSax Jar & Liner | Portable | Tubing Holder |
| |
CSP004T "compact" Electrical Suction Pump High Suction VaxSax Jar & Liner (Trolley Mounted)  | VaxSax Jar & Liner | Trolley Mounted | No Bracket |

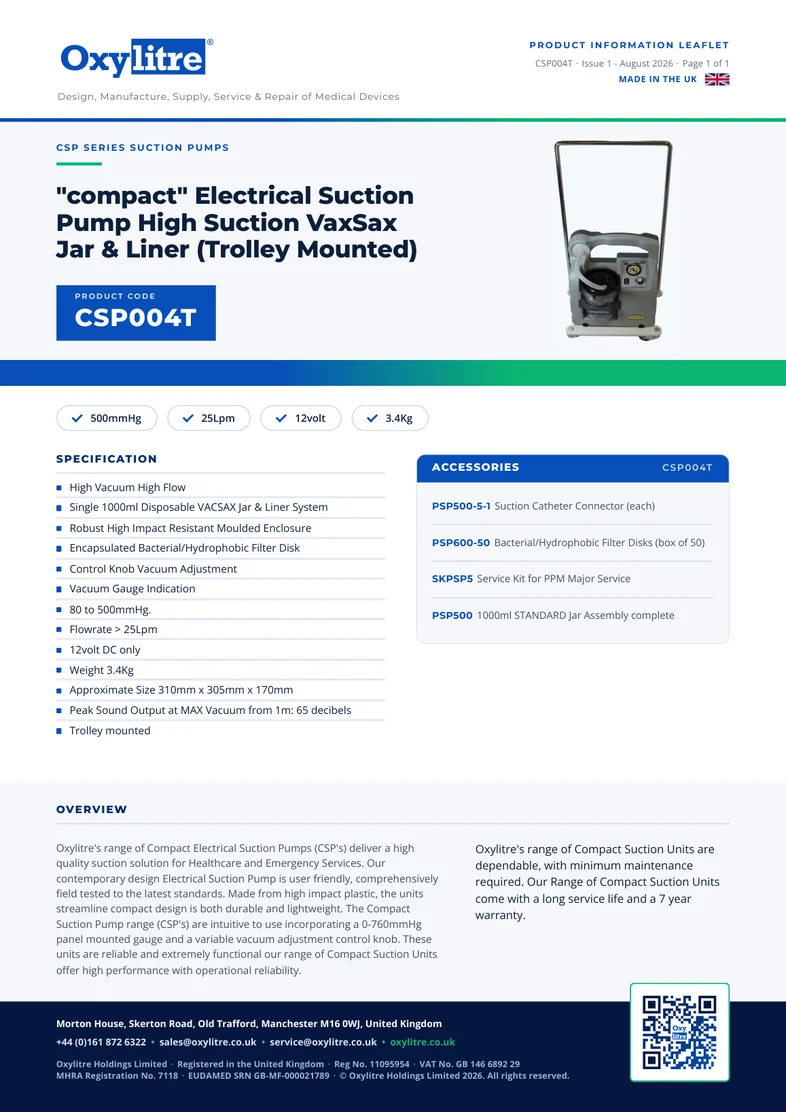

| CSP004T Product sheet (PDF) |
Suction Low Suction, six models Also common to these six models:
| |||||
CSP001L "compact" Electrical Suction Pump Low Suction STANDARD Re-Usable Jar  | Standard Re-usable Jar | Portable | No Bracket |
| CSP001L Product sheet (PDF) |
CSP001LB "compact" Electrical Suction Pump Low Suction STANDARD Re-Usable Jar + Tubing Holder  | Standard Re-usable Jar | Portable | Tubing Holder |
| |
CSP003L "compact" Electrical Suction Pump Low Suction SERRES Bracket  | Serres Bracket | Portable | No Bracket |

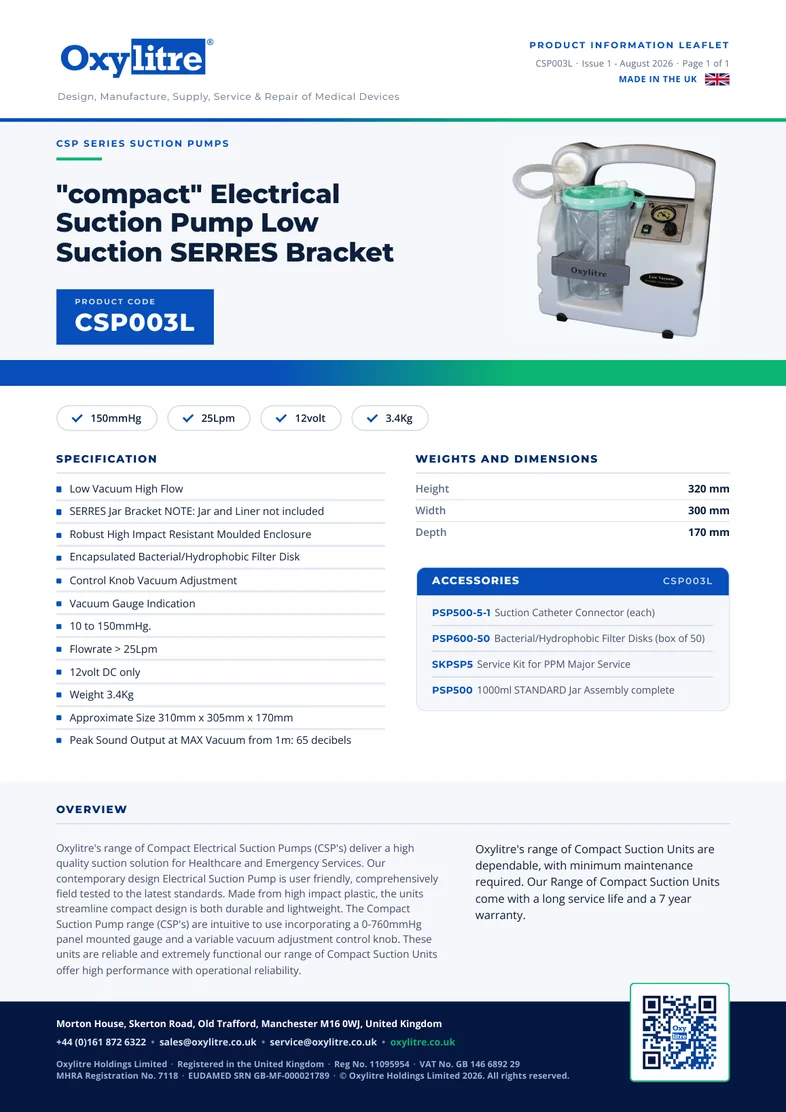

| CSP003L Product sheet (PDF) |
CSP003LB "compact" Electrical Suction Pump Low Suction SERRES Bracket + Tubing Holder  | Serres Bracket | Portable | Tubing Holder |
| |
CSP004L "compact" Electrical Suction Pump Low Suction Disposable VACSAX Jar + Liner  | VaxSax Jar & Liner | Portable | No Bracket |
| CSP004L Product sheet (PDF) |
CSP004LB "compact" Electrical Suction Pump Low Suction Disposable VACSAX Jar + Liner + Tubing Holder  | VaxSax Jar & Liner | Portable | Tubing Holder |
| |
