UK-based medical device manufacturer F1670 Standard Back Bar Configuration Flowmeter Oxygen 0-15Lpm & Oxygen Self Sealing Valve
Designed around the needs of Healthcare and Emergency Service Providers, Oxylitre's range of Standard Medical Pipeline Flowmeters are the Flowmeter of choice for delivering flexible solutions. Our Standard Medical Pipeline Flowmeter Range have a long and exemplary history, simple to use, reliable and extremely functional, our Standard Medical Pipeline Flowmeters offer high performance with durability engineered in to the robust design.
Oxylitre's range of Standard Medical Pipeline Flowmeters are dependable, extremely easy to maintain with a long service life and a 7 year warranty.
Specification
- Oxygen
- Brass Chrome Plated Body
- NOT MRI Conditional
- 4 bar nominal pressure
- BS Colour Fine adjustment Control
- 9/16 UNF Fitting
- Tubing Nipple
- Standard Back Bar Mounting to BS Probe
- Complete with Single BS Coloured Self Sealing Valve
- 0-15Lpm (O₂)
Compare all four models in this range
Accessories & Related Products
All four models
Standard Medical Gas Pipeline Flowmeter & Self Sealing Valve product codes
Find the code you need by valve and flow.
Common to all four models
- Oxygen
- Brass Chrome Plated Body
- NOT MRI Conditional
- 4 bar nominal pressure
- BS Colour Fine adjustment Control
- 9/16 UNF Fitting
- Tubing Nipple
| Model | Valve and flow | Specification | Actions |
|---|---|---|---|
F1670 Standard Back Bar Configuration Flowmeter Oxygen 0-15Lpm & Oxygen Self Sealing Valve  | Single SSV |
| F1670 Product sheet (PDF) |

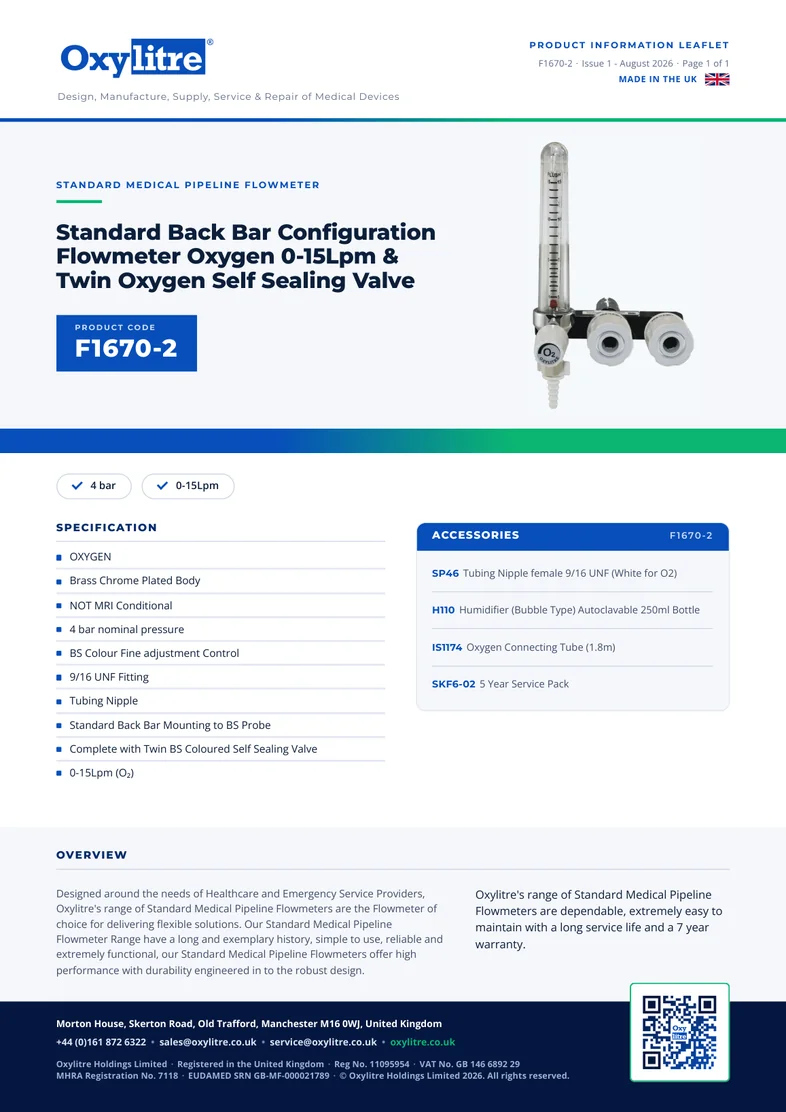

F1670-2 Standard Back Bar Configuration Flowmeter Oxygen 0-15Lpm & Twin Oxygen Self Sealing Valve  | Twin SSV |
| F1670-2 Product sheet (PDF) |

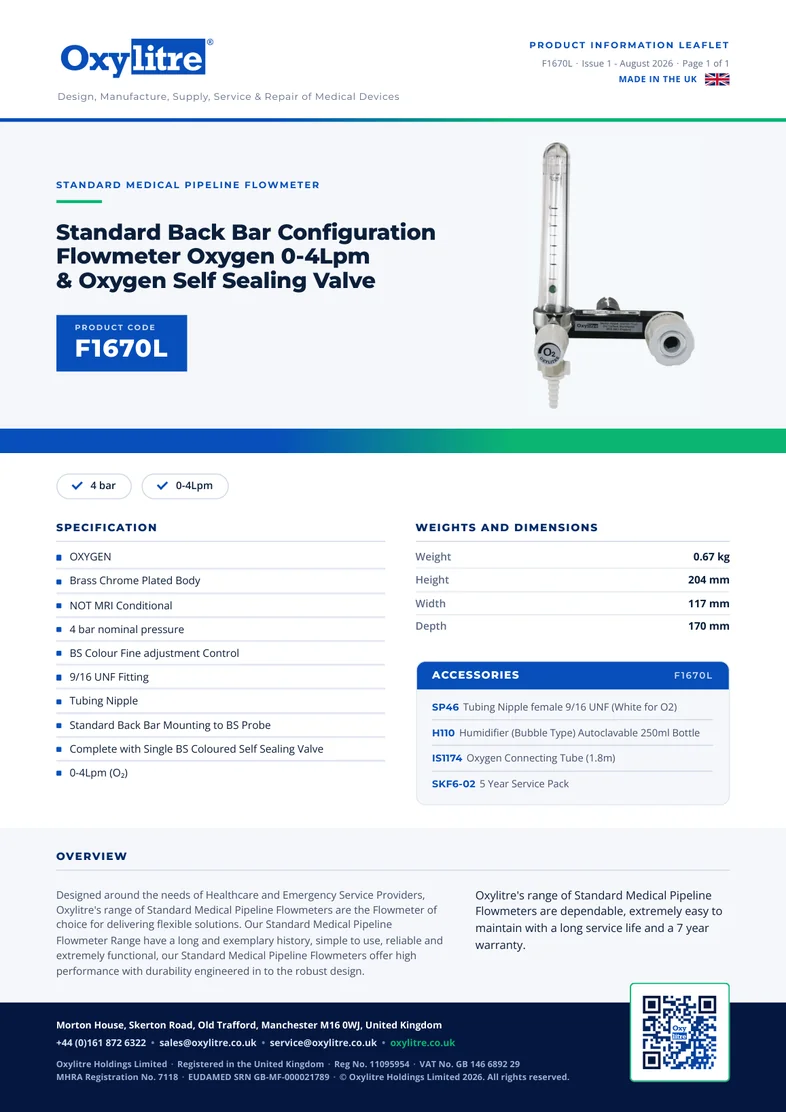

F1670L Standard Back Bar Configuration Flowmeter Oxygen 0-4Lpm & Oxygen Self Sealing Valve  | 0-4 |
| F1670L Product sheet (PDF) |

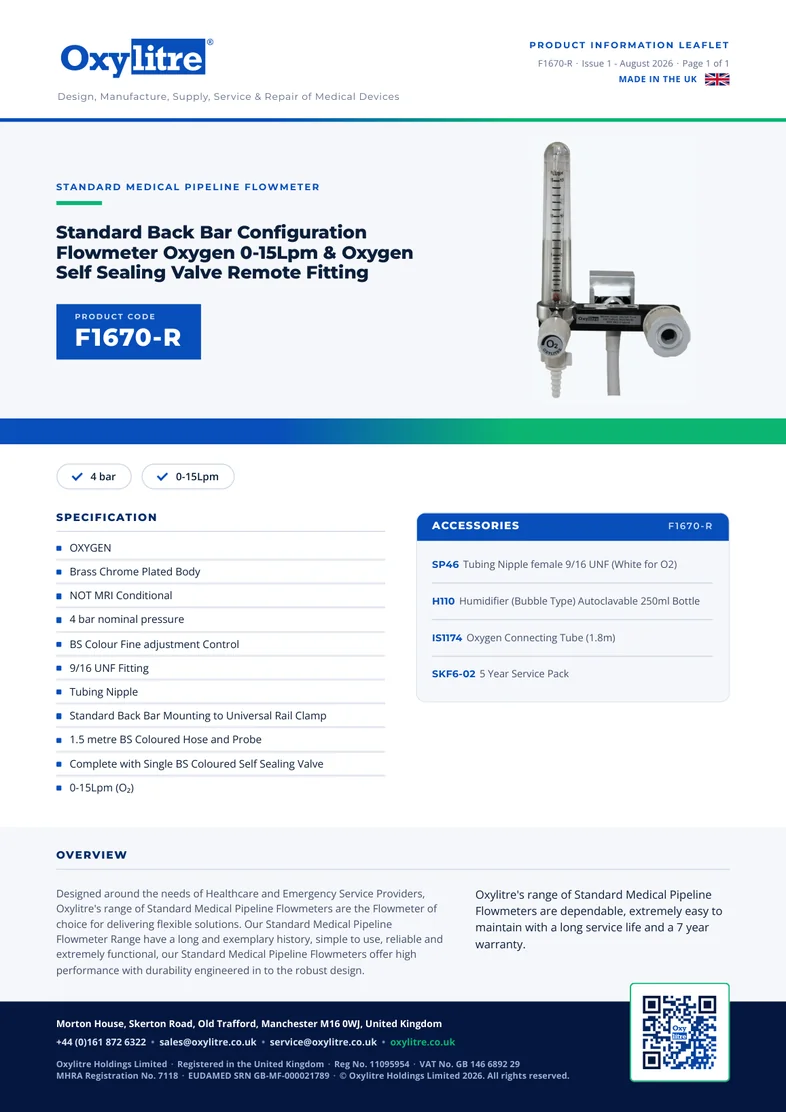

F1670-R Standard Back Bar Configuration Flowmeter Oxygen 0-15Lpm & Oxygen Self Sealing Valve Remote Fitting  | Remote |
| F1670-R Product sheet (PDF) |
