Select-A-Flow Medical Gas Pipeline Flowmeters

F1681 Select-a-Flow Flowmeter (Oxygen) 0–15 LPM

Oxylitre F1681 Select-A-Flow pipeline flowmeter

Oxylitre's range of Medical Select-A-Flow (SAF) Pipeline Flowmeters are the Flowmeter of choice for delivering flexible solutions for Emergency Services and Healthcare Providers. Our Medical (SAF) Pipeline Flowmeter Range are simple to use, reliable and functional with 11 flow settings as standard. The Medical (SAF) Pipeline Flowmeters offer high performance with durability engineered in to the robust and compact design.

Oxylitre's range of Medical Select-A-Flow Pipeline Flowmeters are dependable, extremely easy to maintain with a long service life and a 7 year warranty.

Specification

Gas: Oxygen
Flow: 0 to 15 Lpm: 0, 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10, 15
British Standard Probe
4 bar nominal pressure
BS Colour coded "Click Style" control
11 Individual Flow Settings
Tubing Nipple

Compare all seven models in this range

Quantity applies to the quote list only.

Accessories & Related Products

Flowmeter Accessories

All seven models

Select-a-Flow Medical Gas Pipeline Flowmeters product codes

Find the code you need by gas and flow range.

Common to all seven models

4 bar nominal pressure
BS Colour coded "Click Style" control
11 Individual Flow Settings
Tubing Nipple

Select-a-Flow Medical Gas Pipeline Flowmeters product codes, by gas, flow range
Model	Gas	Flow range	Specification	Actions

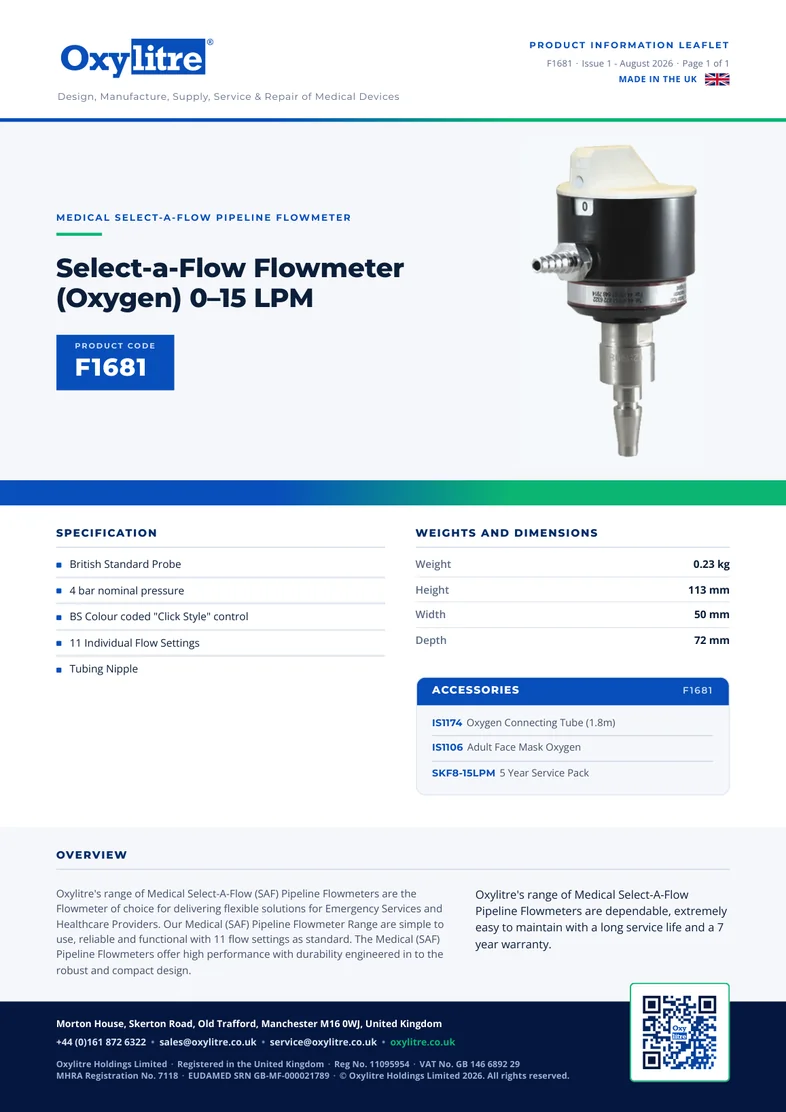

F1681 Select-a-Flow Flowmeter (Oxygen) 0–15 LPM	Gas: Oxygen	0–15 LPM	Flow: 0 to 15 Lpm: 0, 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10, 15 British Standard Probe	F1681 Product sheet (PDF)

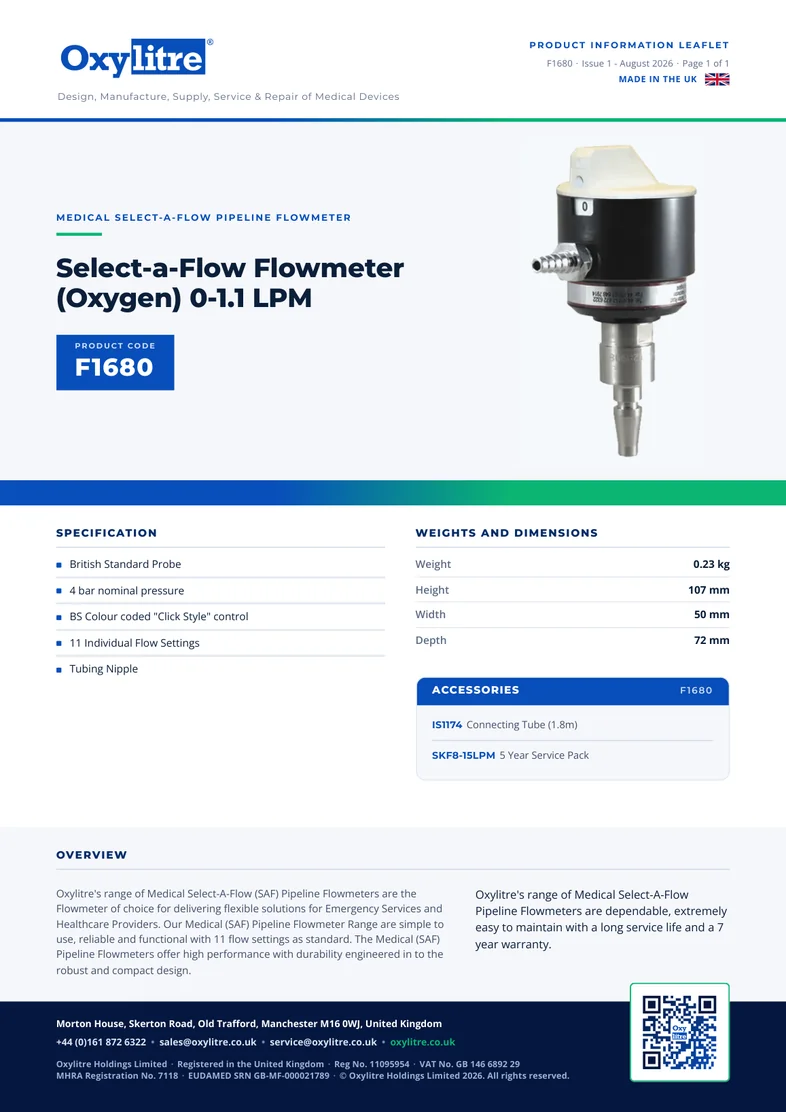

F1680 Select-a-Flow Flowmeter (Oxygen) 0-1.1 LPM	Gas: Oxygen	0-1.1 LPM	Flow: 0 to 1.1 Lpm: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.1 British Standard Probe	F1680 Product sheet (PDF)

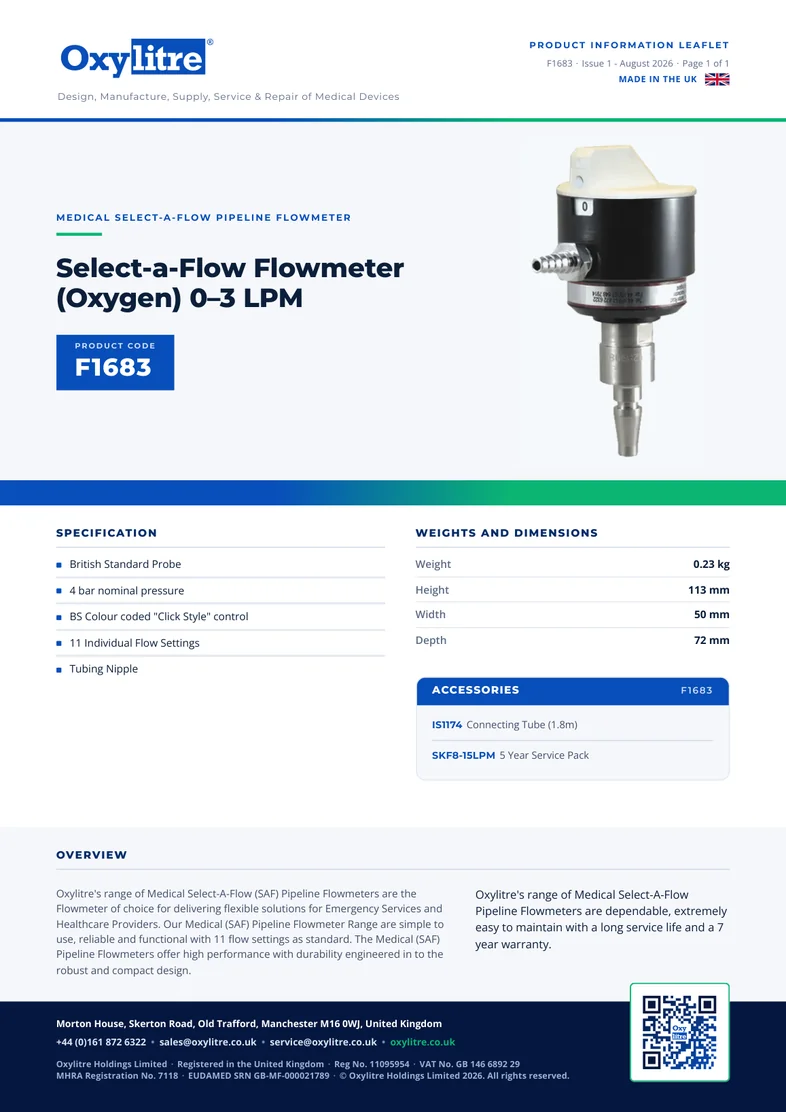

F1683 Select-a-Flow Flowmeter (Oxygen) 0–3 LPM	Gas: Oxygen	0–3 LPM	Flow: 0 to 3 Lpm: 0, 0.25, 0.5, 0.75, 1.0, 1.25, 1.5, 1.75, 2, 2.25, 2.5, 3.0 British Standard Probe	F1683 Product sheet (PDF)

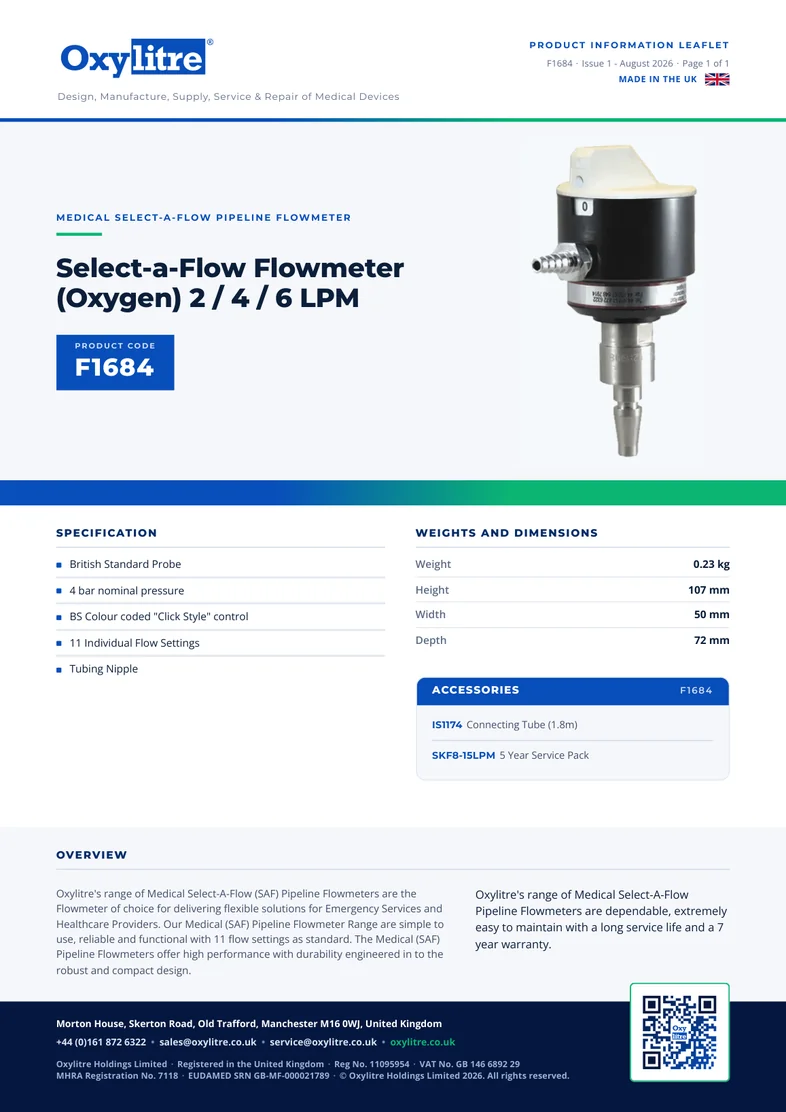

F1684 Select-a-Flow Flowmeter (Oxygen) 2 / 4 / 6 LPM	Gas: Oxygen	2 / 4 / 6 LPM	Flow: 2 / 4 / 6 LPM British Standard Probe	F1684 Product sheet (PDF)

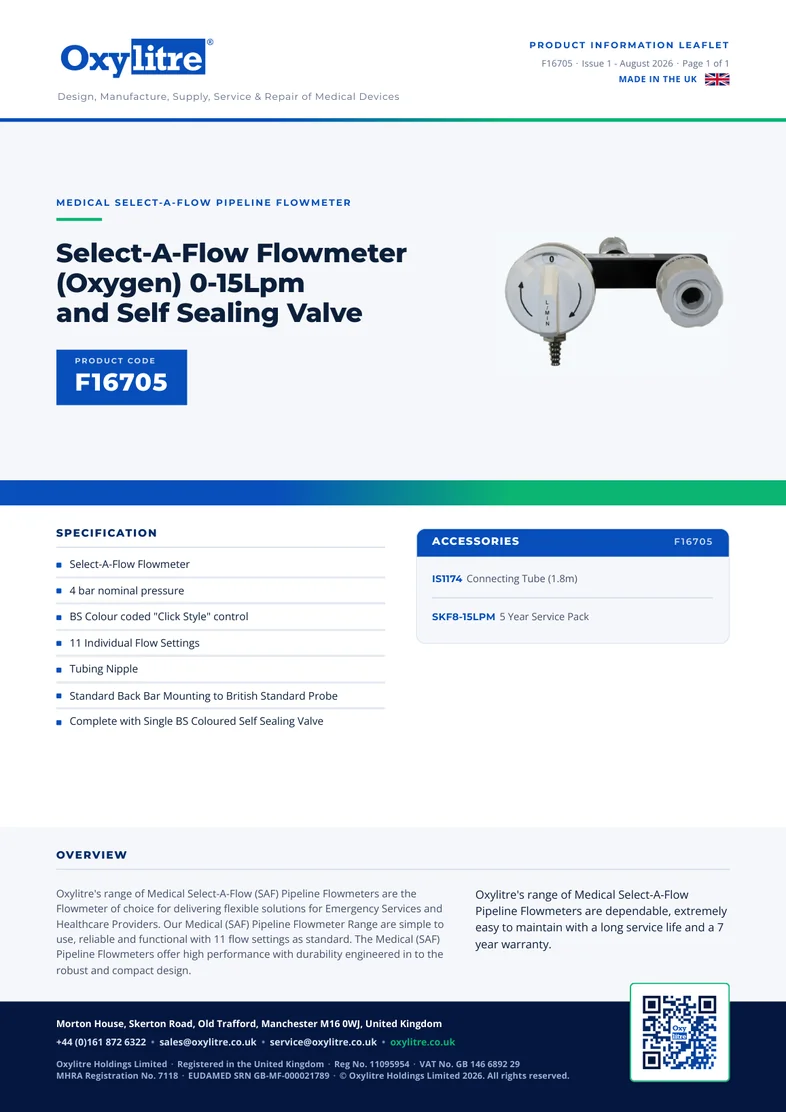

F16705 Select-A-Flow Flowmeter (Oxygen) 0-15Lpm and Self Sealing Valve	Gas: Oxygen	SSV	Flow: 0 to 15 Lpm: 0, 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10, 15 Select-A-Flow Flowmeter Standard Back Bar Mounting to British Standard Probe Complete with Single BS Coloured Self Sealing Valve	F16705 Product sheet (PDF)

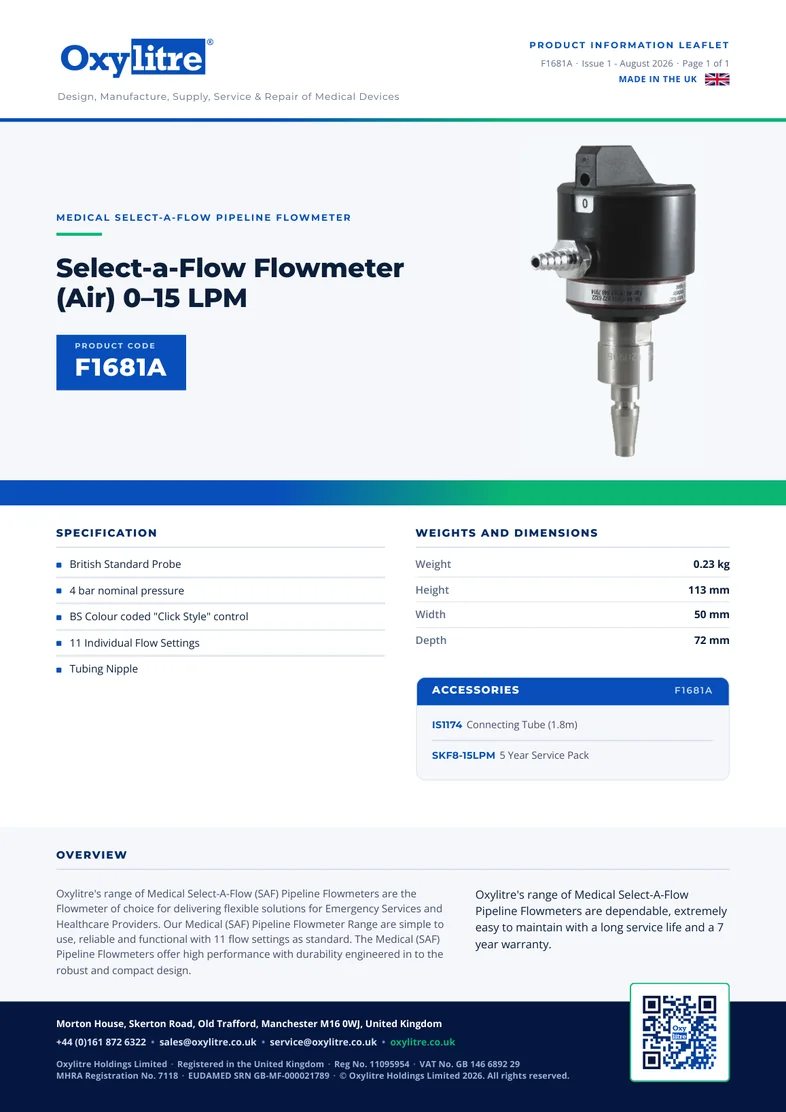

F1681A Select-a-Flow Flowmeter (Air) 0–15 LPM	Air	0–15 LPM	Gas: Medical Air Flow: 0 to 15 Lpm: 0, 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10, 15 British Standard Probe	F1681A Product sheet (PDF)

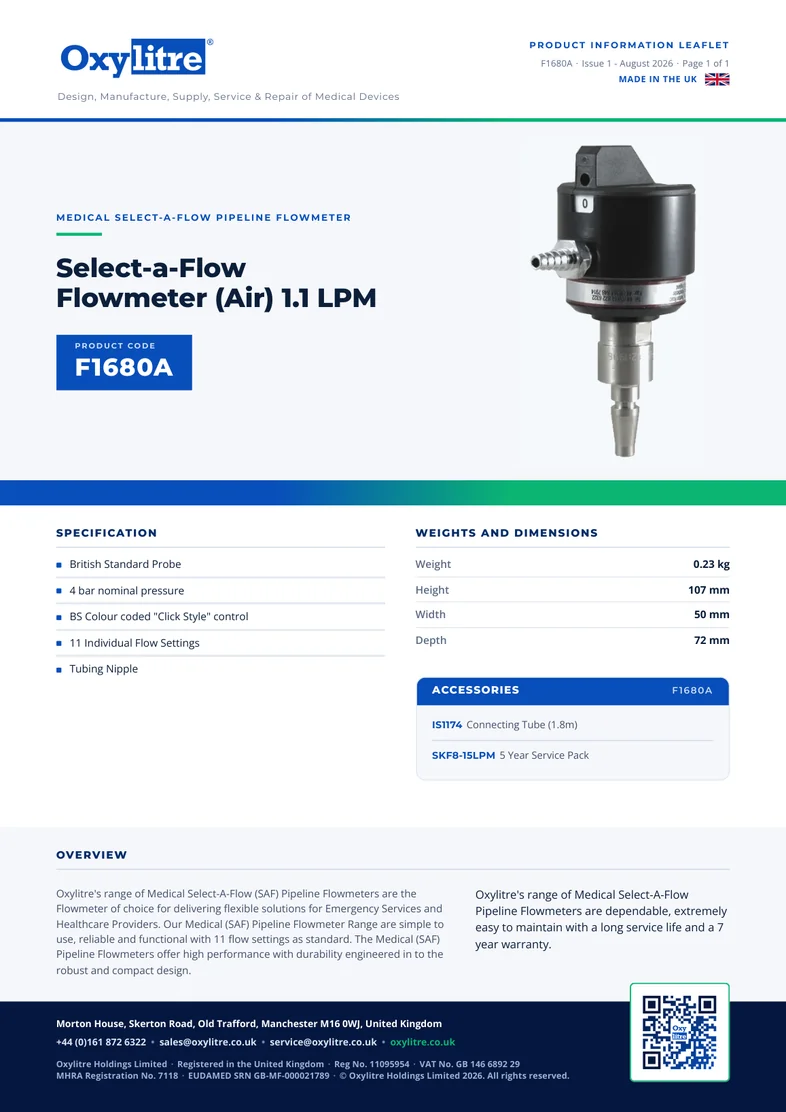

F1680A Select-a-Flow Flowmeter (Air) 1.1 LPM	Air	0-1.1 LPM	Gas: Medical Air Flow: 0 to 1.1 Lpm: 0, 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.1 British Standard Probe	F1680A Product sheet (PDF)

Select-a-Flow Flowmeters

DOWNLOADS

Front page of the Oxylitre F1680 Series Select-A-Flow flowmeter instructions for use

As per the eIFU Regulation (EU) 2021/2226 you can find a copy of previous IFU versions at the bottom of our IFU Downloads page.
If you wish to receive a paper copy of an IFU please send an email to sales@oxylitre.co.uk with your request or use the contact forms on our website.
