UK-based medical device manufacturer R1500 Regulator Twin Gauge Oxygen 0-15lpm
These twin gauge regulators pair the cylinder contents gauge with a 0-15 lpm gauge flowmeter and tubing nipple. The range covers oxygen and medical air, on bullnose or ISO 407 pin-index cylinder fittings. Oxylitre's Standard Medical Regulators are designed with the end user in mind. The Standard Range has a long and exemplary history: simple to use, reliable and extremely functional, with high performance and durability engineered into the robust design.
Oxylitre's range of Standard Medical Regulators are dependable, easy to maintain with a long service life with a 7 year warranty.
Specification
- Oxygen
- Brass Chrome Plated Body
- NOT MRI Conditional
- Bullnose Cylinder Fitting (Compatible with UK Size F & G Cylinders – BS 341–3)
- 138 bar maximum inlet pressure
- Pre-Set 4 bar output pressure
- High Pressure Cylinder Content Gauge
- Complete with Gauge Flowmeter:
- Tubing Nipple
- 0-15Lpm (O₂)
Compare all four models in this range
Accessories & Related Products
All four models
Standard Regulator Twin Gauge product codes
Find the code you need by cylinder connection and gas.
Common to all four models
- Brass Chrome Plated Body
- NOT MRI Conditional
- 138 bar maximum inlet pressure
- Pre-Set 4 bar output pressure
- High Pressure Cylinder Content Gauge
Complete with Gauge Flowmeter:
- Tubing Nipple
| Model | Cylinder connection | Gas | Specification | Actions |
|---|---|---|---|---|

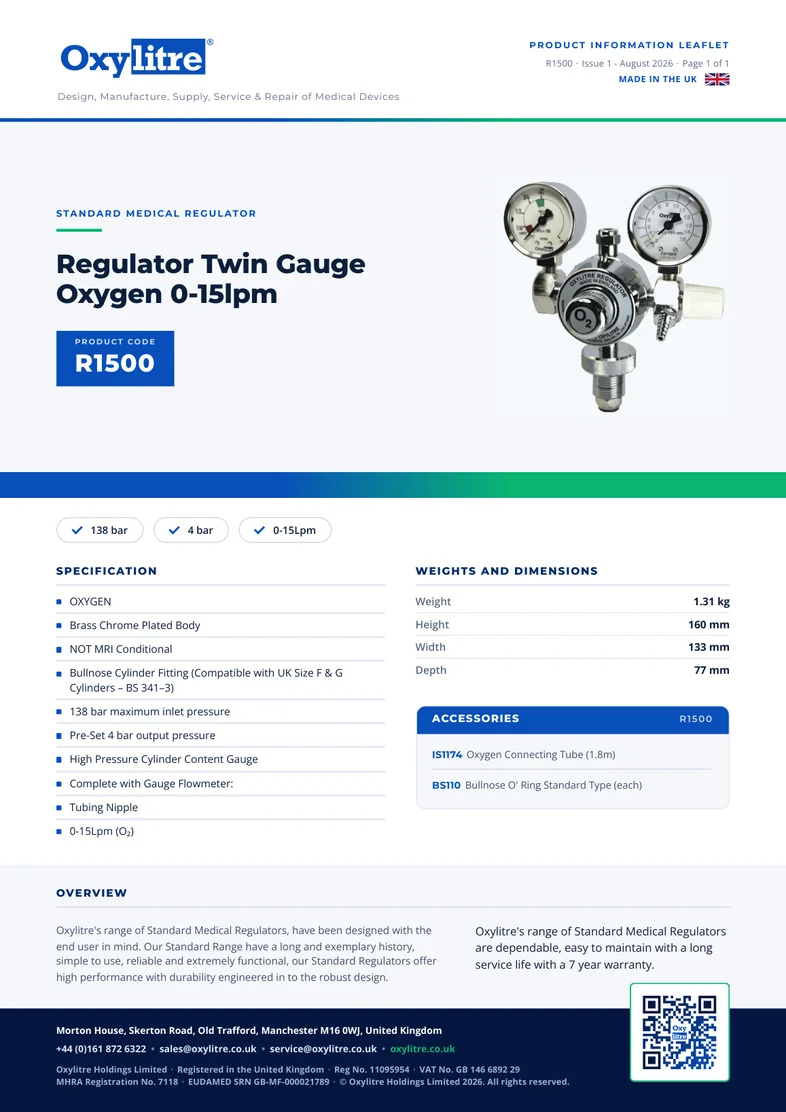

R1500 Regulator Twin Gauge Oxygen 0-15lpm  | Bullnose | Oxygen |
| R1500 Product sheet (PDF) |

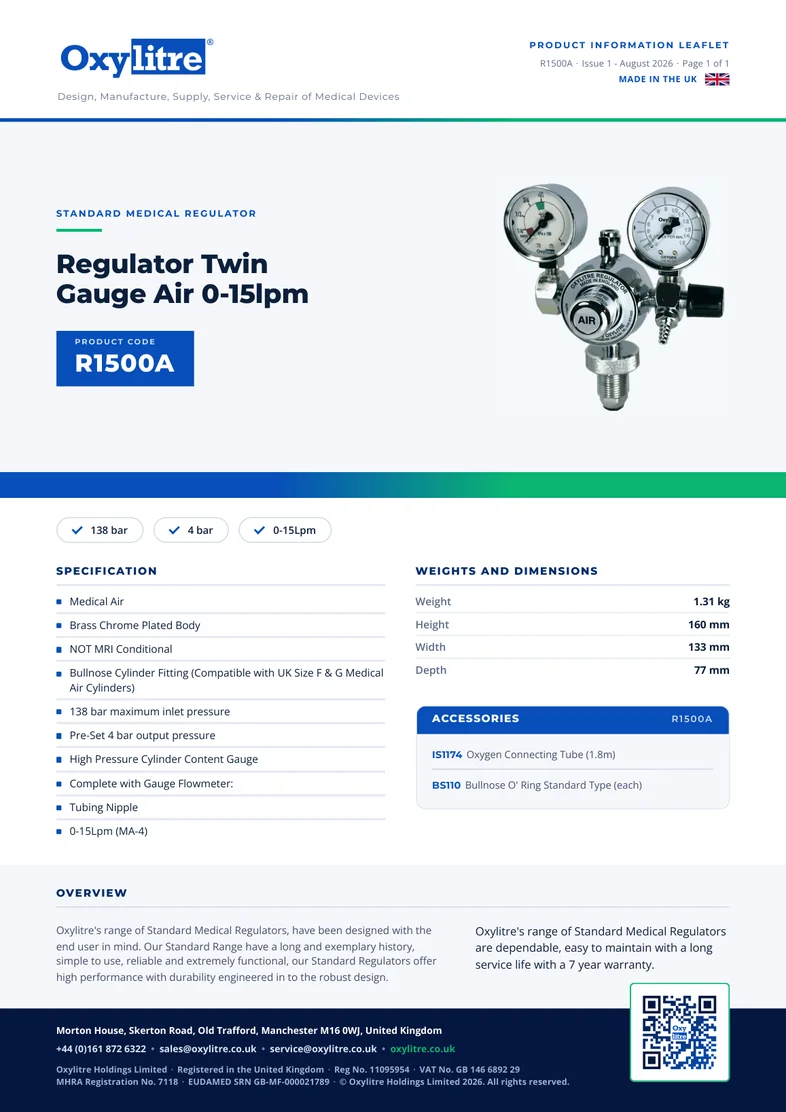

R1500A Regulator Twin Gauge Air 0-15lpm  | Bullnose | Air |
| R1500A Product sheet (PDF) |

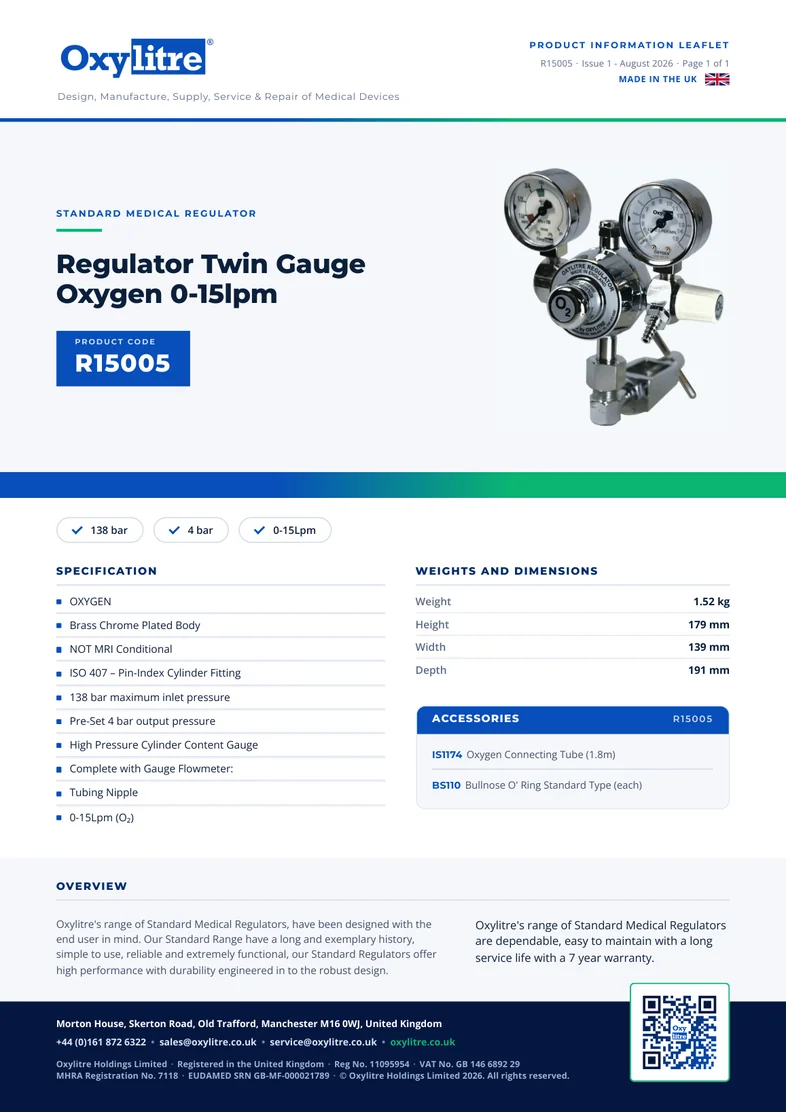

R15005 Regulator Twin Gauge Oxygen 0-15lpm  | Pin-Index | Oxygen |
| R15005 Product sheet (PDF) |

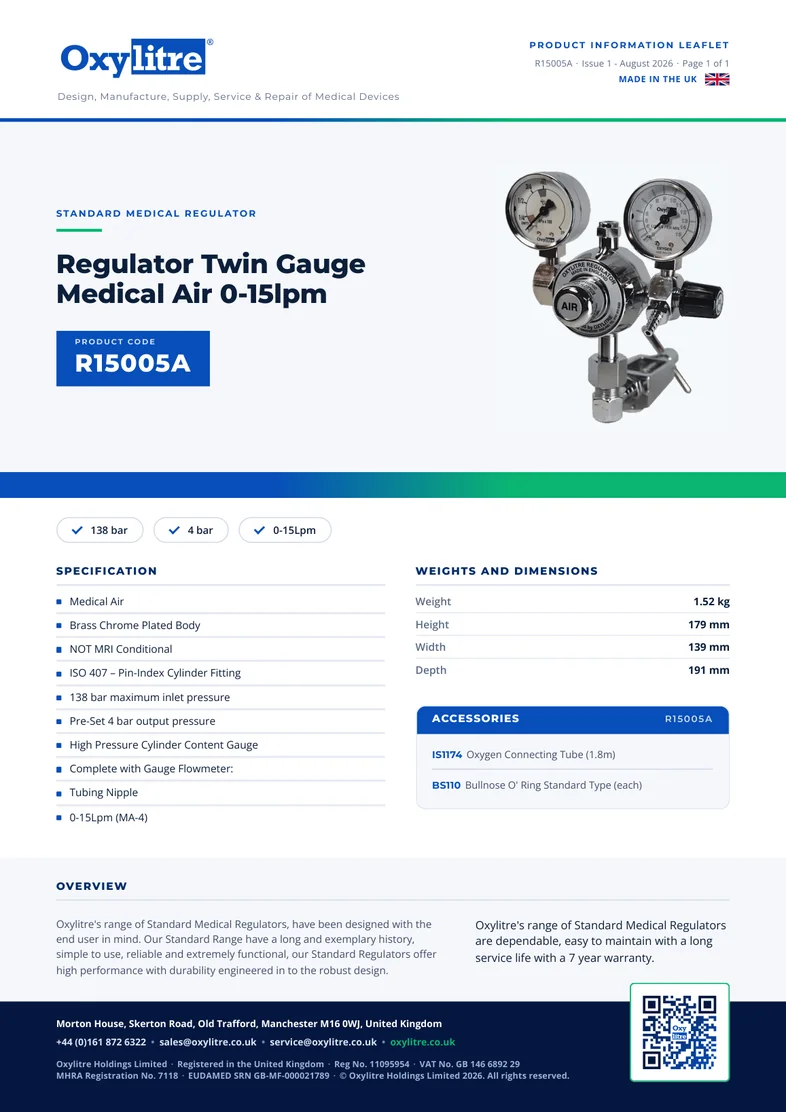

R15005A Regulator Twin Gauge Medical Air 0-15lpm  | Pin-Index | Air |
| R15005A Product sheet (PDF) |
As per the eIFU Regulation (EU) 2021/2226 you can find a copy of previous IFU versions at the bottom of our IFU Downloads page.
If you wish to receive a paper copy of an IFU please send an email to sales@oxylitre.co.uk with your request or use the contact forms on our website.
